6×4 Mower Trailer – Single Axle

• Model: MOWER-TRAILER-SINGLE-AXLE-6X4

• Chassis: 50X50X2.5mm RHS

• Drawbar: 100x50x3mm RHS

• Floor/sides: 2.1mm checker plate with rolled 350mm high sides

• Suspension: 7 Leaf Eye – slipper springs

• Axles: Solid 45mm square premium 1045 grade steel

• Brakes: Mechanical disc brakes & calipers

• Wheels/Tyres: 185/70 LT tyres fitted to 14×6 inch Sunraysia type rims

• Tow Coupling: 50mm override tow coupling (2000kg rated)

• Paint: Etched primed & painted with industrial dark grey enamel.



• Lights: High quality LED ADR approved multi-volt tail lights
• Lights other: Front white & amber side reflectors to
• Reflectors: Front white & amber side
• Mudflaps: Fitted with 10×9″ Durable mudflaps
• Jockey Wheel: 6″ medium duty, 8″ on Tandem trailers
• Safety Chains: Twin ADR approved chain

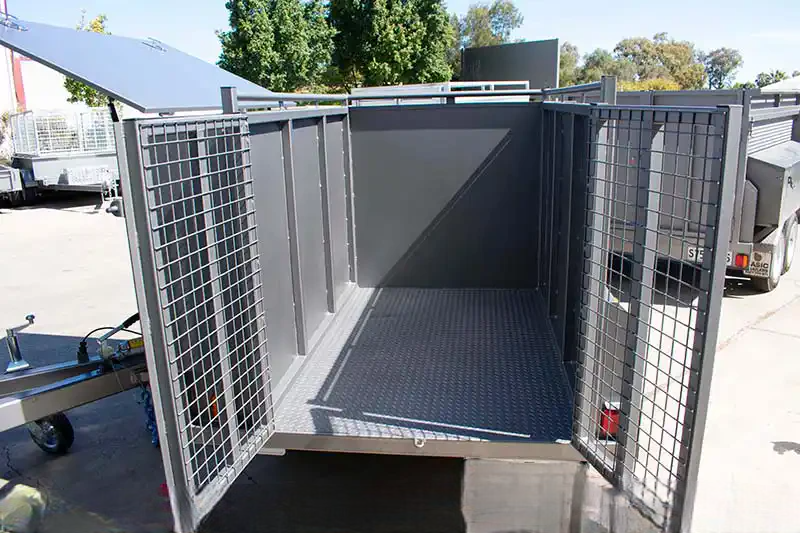

• Cages: Upgrade with our 900mm high trailer cages, they are one of the best quality cages you will find. The cages are made of 40mm tube and are fitted with a half inch bolt set. All cages are brushed post galvanising to ensure an even and clean finish.
